High output materials synthesis and crystallization with online XRD

FLEX AUTOPLANT for materials synthesis and crystallization with online / offline XRD
Quality by design (QbD), proven accetable range (PAR) driven high-output process R&D / chemical development, preparative synthesis, work-up, and analysis with online / offline benchtop XRD.
Two blue chemspeed robotic platforms in metal sitting in a white hallway
Overview

Chemspeed's solution

The Chemspeed FLEX AUTOPLANT workstations have been designed for high output experimentation in the development and optimization of pharmaceuticals, agrochemicals, polymers, specialty chemicals, catalysts, cathode materials, photovoltaics materials, storage materials and many more.

  • End-to-end process R&D / chemical development / scale-up
  • Organic and inorganic synthesis, reactions under pressure
  • Preparative synthesis
  • Crystallization

The cutting edge process development workstation technology allows scientists to execute and perform a variety of workflows in a fully automated fashion and truly mimic the final industrial production process. It provides all the flexibility to optimize integrated reaction sequences, even if a complex configuration of reactors and feed vessels is required.

Benefits

Powerful advantages

Each reactor with its own set of conditions - individually controlled tank reactors (reactor volumes 100, 240, 1’000 mL total volume) with precise, continuous feeds.



  • Up to 6 syntheses per run on a FLEX AUTOPLANT (incl reaction prep, reaction execution, work-up, analysis).
  • Easily exchangeable stirrer designs (anchor, twisted blade, gas entrainment stirrers…).
  • Powerful mixing for viscosities up to 80 Pa.s at 300 rpm and 30 Pa.s at 900 rpm with an anchor stirrer.
  • Flexible and precise continuous feeds.
  • Multiple continuous liquid, liquefied gas and / or gas feeds per reactor and additional unlimited overhead access.
  • Internal and / or jacket temperature control, reflux.
  • Pressure up to 100 bar with corresponding safety installations.
  • Parallel high-performance calorimetry and viscosity data.
  • PAT interfaces to various in-situ probes, for example: pH, UV-VIS, IR, Raman, PSD, calorimetry.
  • Measurement of gas consumption.
  • Dean Stark water trap.
  • Distillation bridge.
  • Vacuum for different purposes: inertization, crystallization, ...
  • Extraction, filtration, evaporation, crystallization, distillation.
  • Ventilated hood for safety and conditioned (sensitive chemicals, low-temperature) operation.
  • AUTOSUITE SOFTWARE - drag & drop experimentation with easy interface (e.g. python custom device) to e.g. LIMS, ELN, data analysis, AI / ML closed loop.

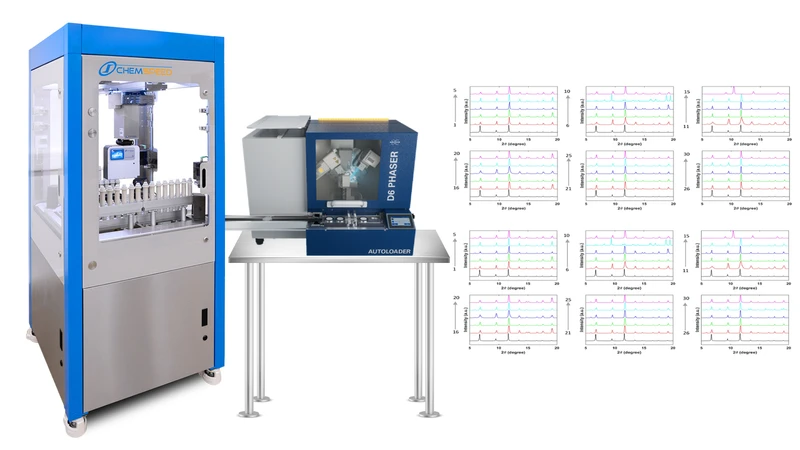

  • Integrated online benchtop XRD such as Bruker D6 Phaser, Malvern Aeris, incl. XRD device, sample handover station, software and hardware integration
Software

AUTOSUITE

Chemspeed’s AUTOSUITE software packages execute and control all modules in every solution. They control all Chemspeed robotic platforms and any other integrated 3rd-party software and hardware.
