Automated batch & flow chemistry

MULTIPLANT / AUTOPLANT FLOWCHEM for continuous flow chemistry

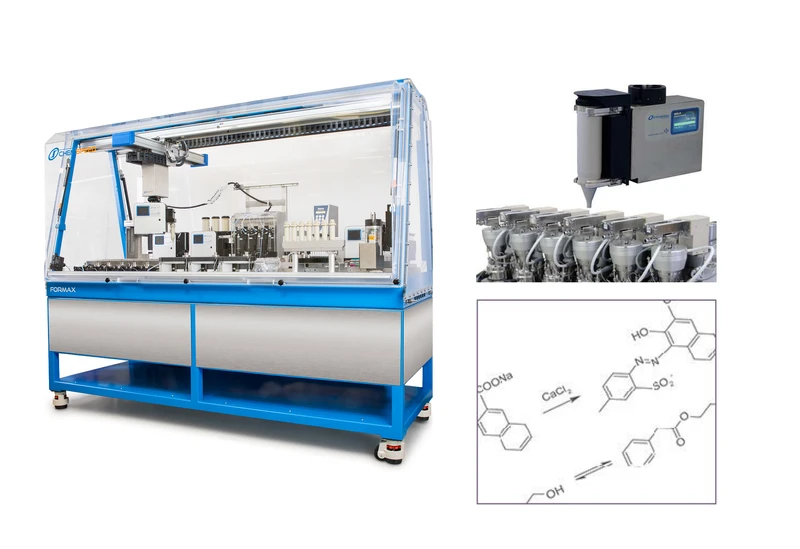

Two blue chemspeed robotic platforms in metal sitting in a white hallway
Overview

Chemspeed's solution

The leading technology in versatile combination of automated batch & flow chemistry combined with our quality by design reactor as well as process excellence and user-friendly software enable you to accelerate, standardize and digitalize your organic process R&D workflows in batch and continuous mode.


Workflow

Example workflow

MULTIPLANT / AUTOPLANT FLOWCHEM

Benefits

Powerful advantages

Each reactor with its own set of conditions - individually controlled tank reactors (reactor volumes 100, 240, 1’000 mL total volume) with precise, continuous feeds:

  • Up to 12 / 24 experiments per run on an AUTOPLANT, up to 6 per run on a semi-automated MULTIPLANT.
  • Unrivaled combination of batch & flow chemistry.
  • Independent, precise process parameter control in each reactor (such as feed / flow, temperature, mixing).
  • Independent gas, liquefied gas and liquid feeds.
  • Gravimetric solid and (viscous) liquid dispensing.
  • 4-Needle Head for volumetric liquid handling and sampling.
  • PAT like IR, PSD, calorimetry, pH.
  • Feeding and sampling under reaction conditions.
  • Reaction under reflux at ambient pressure with optional Dean Stark water removal or distillation.
  • Reactions at elevated pressure.
  • Vessel-to-vessel transfer for multistep reactions.
  • Workup with liquid / liquid extraction, drying, solid-phase extraction, filtration or evaporation.
  • Cleaning in place (e.g. automated cleaning, inserts).
  • Ventilated hood for safety and conditioned (sensitive chemicals, low-temperature) operation.
  • AUTOSUITE SOFTWARE - drag & drop experimentation with easy interface (e.g. python custom device) to e.g. LIMS, ELN, data analysis, AI / ML closed loop.
  • Optional integrated online benchtop NMR with available operating frequency ranges of e.g. 80 / 90 MHz such as Bruker Fourier Rxn Lite, Magritek Spinsolve, incl. NMR device, sample injection port, software and hardware integration, H / F / C / P / Si / B, 1D and 2D spectra, online data acquisition via flow cell or offline via standard 5 mm sample tubes, permanent magnet - no liquid nitrogen or helium required, 2 Gauss line inside NMR device housing.
