High output porous materials synthesis, work-up, analysis

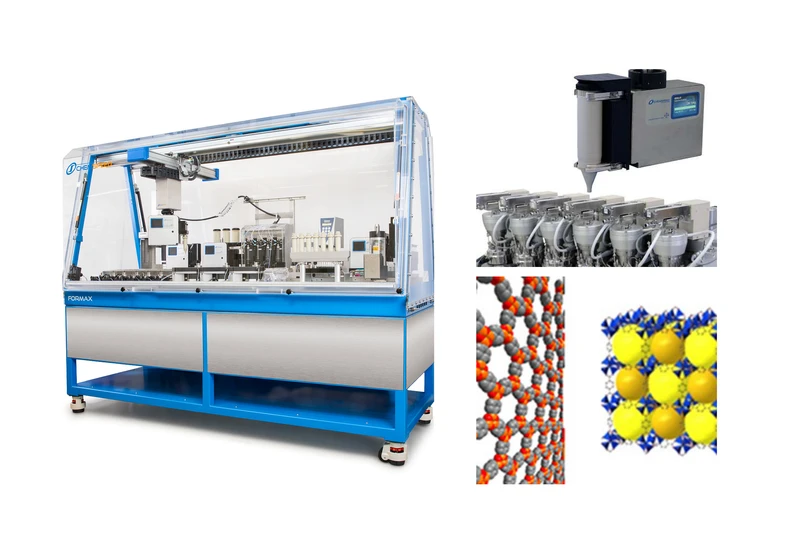

MULTIPLANT / AUTOPLANT ZEO for porous materials synthesis
Accelerated, standardized, digitized automated zeolite and metallorganic framework (MOF) synthesis and work-up by precisely controlled hydro- and solvothermal synthesis.
Two blue chemspeed robotic platforms in metal sitting in a white hallway
Overview

Chemspeed's solution

The leading technology in overhead gravimetric dispensing / dosing (patented) combined with our quality by design reactor technology and process excellence and user-friendly software enable you to accelerate, standardize and digitalize your porous materials (zeolites, metallorganic framework / MOF) synthesis and work-up workflows.

Workflow

Example workflow

The interactive workflow panel below showcases example workflows for this solution. Each Chemspeed tool or module performs a set of specific actions, as in any manual lab workflow, and an almost limitless arrangement of these tools is possible.

MULTIPLANT / AUTOPLANT ZEO

Details
đź’ˇ Click on a workflow node to see more details in this details panel.
Benefits

Powerful advantages

Each reactor with its own set of conditions - individually controlled tank reactors (reactor volumes 100, 240, 1’000 mL total volume) with precise, continuous feeds:

  • Up to 12 / 24 hydro- / solvothermal syntheses per run on an AUTOPLANT (incl reaction prep, reaction execution, work-up, analysis), up to 6 per run on a semi-automated MULTIPLANT.
  • Easily exchangeable stirrer designs (anchor, twisted blade, gas entrainment stirrers…).
  • Powerful mixing for viscosities up to 80 Pa.s at 300 rpm and 30 Pa.s at 900 rpm with an anchor stirrer.
  • Independent control of all process parameters in each reactor.
  • Independent, precise temperature and stirring control in each reactor.
  • Gravimetric solid and viscous liquid dispensing.
  • 4-Needle Head for volumetric liquid handling and sampling.
  • Liquid and slurry feeds at reaction conditions.
  • Cleaning in place (e.g. automated cleaning, inserts).
  • Ventilated hood for safety and conditioned operation.
  • AUTOSUITE SOFTWARE - drag & drop experimentation with easy interface (e.g. python custom device) to e.g. LIMS, ELN, data analysis, AI / ML closed loop.
  • Optional integrated online benchtop XRD such as Bruker D6 Phaser, Malvern Aeris, incl. XRD device, sample handover station, software and hardware integration
Software

AUTOSUITE

Chemspeed’s AUTOSUITE software packages execute and control all modules in every solution. They control all Chemspeed robotic platforms and any other integrated 3rd-party software and hardware.
